Emergency Exterior Waterproofing in Barrie Rental Property — Failed Weeping Tile Replacement & Dual-Wall Protection

Project: Emergency Two-Wall Exterior Waterproofing with Weeping Tile Replacement
Location: Barrie, Ontario
Client: Existing Customer - Rental Property Owner
Emergency: Failed weeping tile discharge after heavy thaw and rainfall
Response Time: Same-day assessment and emergency pump installation
Scope: Two foundation walls plus complete drainage system replacement

When an existing MT Drains client called from Barrie with an emergency basement flooding situation at their rental property, we responded immediately. This property owner had trusted us with their back wall waterproofing 4-5 years ago, but the recent combination of rapid spring thaw and heavy rainfall exposed a critical weakness: their weeping tile discharge system had failed.

With basement tenants frantically trying to vacuum water coming up from under the concrete floor and the property owner away on a business trip, this situation required both immediate emergency response and comprehensive long-term solutions. Our rapid deployment of emergency pumping equipment allowed tenants to relocate temporarily while we addressed the root cause through professional two-wall exterior waterproofing.

The Challenge: Failed Weeping Tile Creates Emergency

This Barrie rental property emergency highlighted how even previously waterproofed homes can develop new vulnerabilities over time. The crisis began during Barrie's dramatic spring weather pattern:

Emergency Situation

• Water Source: Water infiltrating from under the concrete basement floor
• Tenant Impact: Basement renters attempting to vacuum rising water
• System Failure: Weeping tile discharge completely blocked and non-functional
• Owner Absence: Property owner traveling for work during crisis
• Weather Trigger: Rapid snowmelt combined with heavy rainfall overwhelming drainage

Assessment Findings

Our immediate assessment revealed multiple interconnected problems:

• Weeping Tile Blockage: Original discharge system completely failed
• Hydrostatic Pressure: Groundwater building pressure under basement slab
• Drainage Inadequacy: Existing system unable to handle Barrie's spring runoff
• Foundation Stress: Water pressure affecting multiple foundation walls
• Tenant Displacement Risk: Unsafe living conditions requiring immediate action

The situation demonstrated how weeping tile systems can deteriorate over time, especially when subjected to Barrie's challenging freeze-thaw cycles and heavy seasonal precipitation.

Emergency Response: Immediate Water Management

Understanding the urgency of the situation with tenants living in the affected basement, MT Drains implemented an emergency response plan that prioritized both immediate relief and preparation for permanent solutions.

Same-Day Emergency Measures

Within hours of the initial call, our emergency response team was on-site implementing critical water management measures:

Emergency Sump Pump Installation

• Rapid Assessment: Identified optimal pump placement for maximum effectiveness
• Professional Equipment: Deployed high-capacity pumps designed for emergency situations
• Discharge Planning: Established temporary water routing away from foundation
• Backup Systems: Multiple pumps to ensure continuous operation

Tenant Relocation Coordination

• Worked with property owner to arrange temporary accommodation
• Ensured basement was safe for personal property removal
• Coordinated with drying specialists for moisture remediation
• Established timeline for tenant return after completion

Water Diversion and Control

The emergency pump system was designed to provide both immediate relief and create conditions for permanent waterproofing work:

• Continuous Operation: 24/7 pumping to maintain dry conditions
• Pressure Relief: Reducing hydrostatic pressure under the basement slab
• Work Area Preparation: Creating dry conditions for excavation work
• Monitoring Systems: Regular checks to ensure system effectiveness

Weeping Tile Failure Analysis: Understanding the Problem

This Barrie property's weeping tile failure after 4-5 years provided valuable insights into common drainage system vulnerabilities in Central Ontario's climate.

Common Causes of Weeping Tile Failure

Barrie Climate Factors

• Freeze-Thaw Cycles: Repeated freezing and thawing can shift drainage pipes
• Spring Runoff: Rapid snowmelt can overwhelm undersized systems
• Clay Soil Movement: Barrie's clay-heavy soil expands and contracts seasonally
• Root Infiltration: Tree roots growing into drainage pipes over time

System Design Limitations

• Inadequate Capacity: Original system sized for normal conditions only
• Poor Discharge Design: Discharge points vulnerable to blockage
• Material Degradation: Older materials breaking down over time
• Installation Issues: Previous installation not meeting current standards

Why Re-Assessment is Critical

This project illustrated why even previously waterproofed properties need periodic re-evaluation:

• Foundation systems experience ongoing stress from seasonal changes
• Climate patterns may exceed original design parameters
• Materials and connections degrade over time
• Property modifications can affect drainage patterns
• Maintenance requirements may have been overlooked

Two-Wall Exterior Waterproofing Solution

Based on our comprehensive assessment, we recommended complete two-wall exterior waterproofing with integrated sump pump system and new weeping tile installation. This approach would address both the immediate emergency and provide long-term protection against future failures.

Comprehensive System Design

The solution included multiple integrated components:

• Two-Wall Coverage: Waterproofing both affected foundation walls
• Complete Weeping Tile Replacement: New drainage system with proper capacity
• Permanent Sump System: Integrated pumping for ongoing protection
• Enhanced Discharge: Multiple discharge points preventing future blockages
• Membrane Integration: Seamless connection between all waterproofing elements

Project Phases: Professional Restoration Process

With emergency pumping maintaining dry conditions and tenants safely relocated, we began the comprehensive exterior waterproofing project following our proven systematic approach.

Phase 1: Strategic Excavation

The excavation phase required careful planning to work around the existing emergency pumping system while accessing both foundation walls needing treatment.

Excavation Challenges and Solutions

• Access Planning: Coordinating excavation with emergency pump locations
• Soil Management: Handling Barrie's clay soil in wet conditions
• Utility Avoidance: Working around existing underground services
• Staged Approach: Completing excavation in phases to maintain pump access

The excavation revealed the full extent of the weeping tile failure, including complete blockage of the discharge system and significant deterioration of drainage materials.

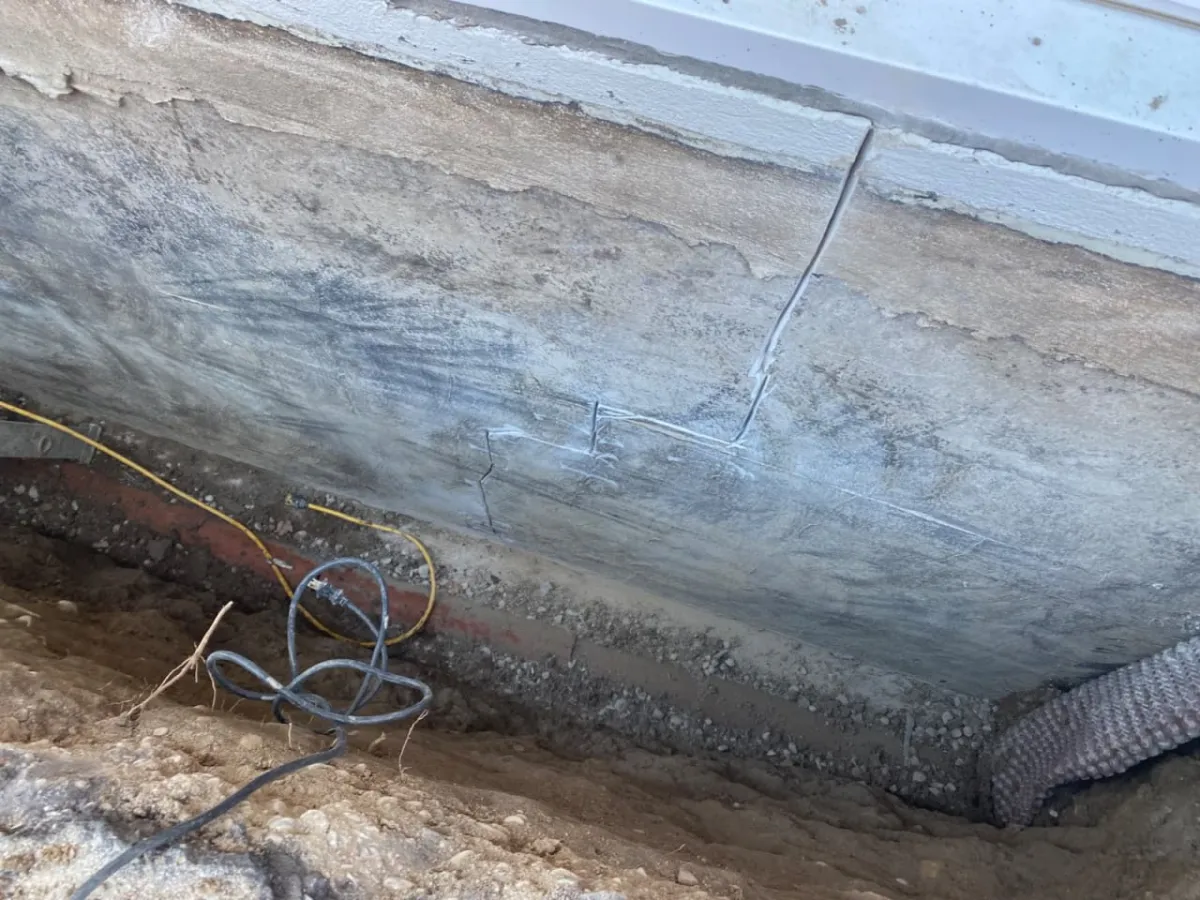

Phase 2: Foundation Wall Preparation

With both foundation walls exposed, our team began the detailed preparation process essential for long-lasting waterproofing performance.

Two-Wall Preparation Process

• Surface Cleaning: Removing all debris, old materials, and contamination
• Structural Assessment: Checking both walls for cracks or damage
• Repair Work: Addressing minor foundation issues before waterproofing
• Surface Preparation: Creating optimal conditions for membrane adhesion

The preparation phase revealed why the original waterproofing had remained effective on the back wall while drainage system failure affected other areas.

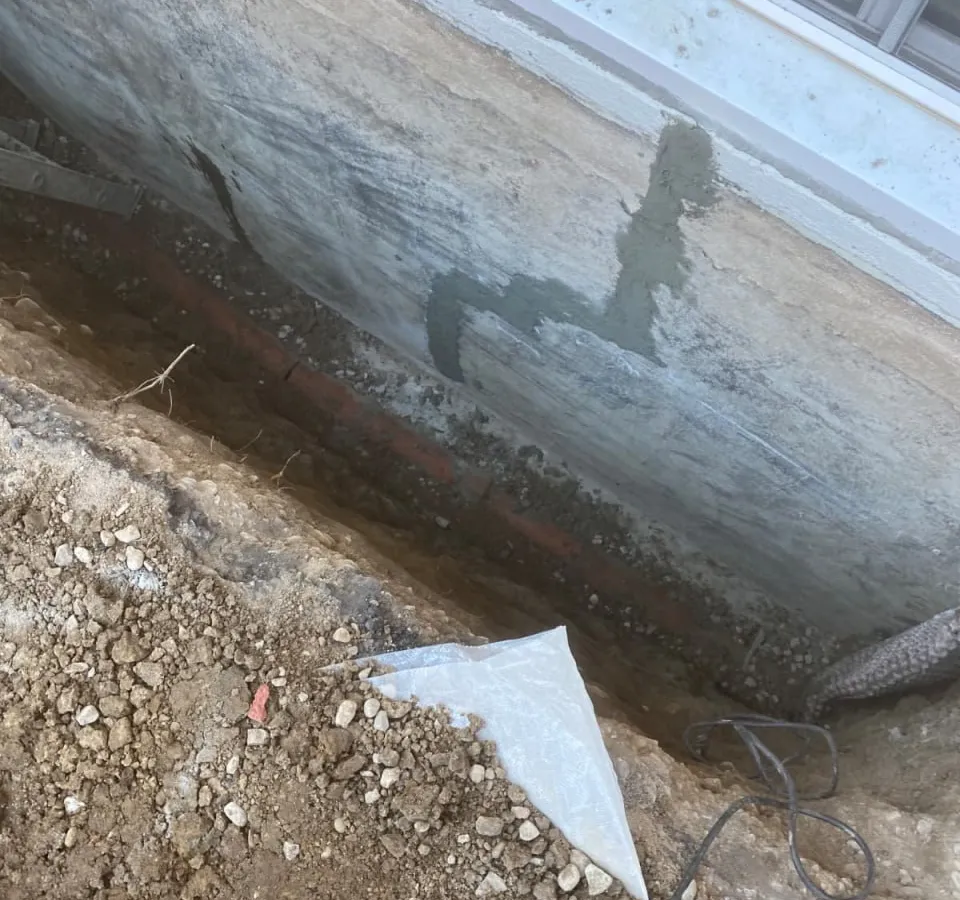

Phase 3: Professional Membrane Application

The waterproofing membrane installation was customized for Barrie's climate conditions and the specific challenges revealed by the emergency situation.

Advanced Membrane System

• Base Coat Application: Liquid membrane ensuring complete coverage
• Reinforcement Integration: Added strength at corners and transitions
• Multi-Layer Protection: Building redundant waterproof barriers
• Quality Control: Thorough inspection of all membrane connections

Special attention was paid to integrating the new waterproofing with the existing back wall system, creating a comprehensive protective envelope around the foundation.

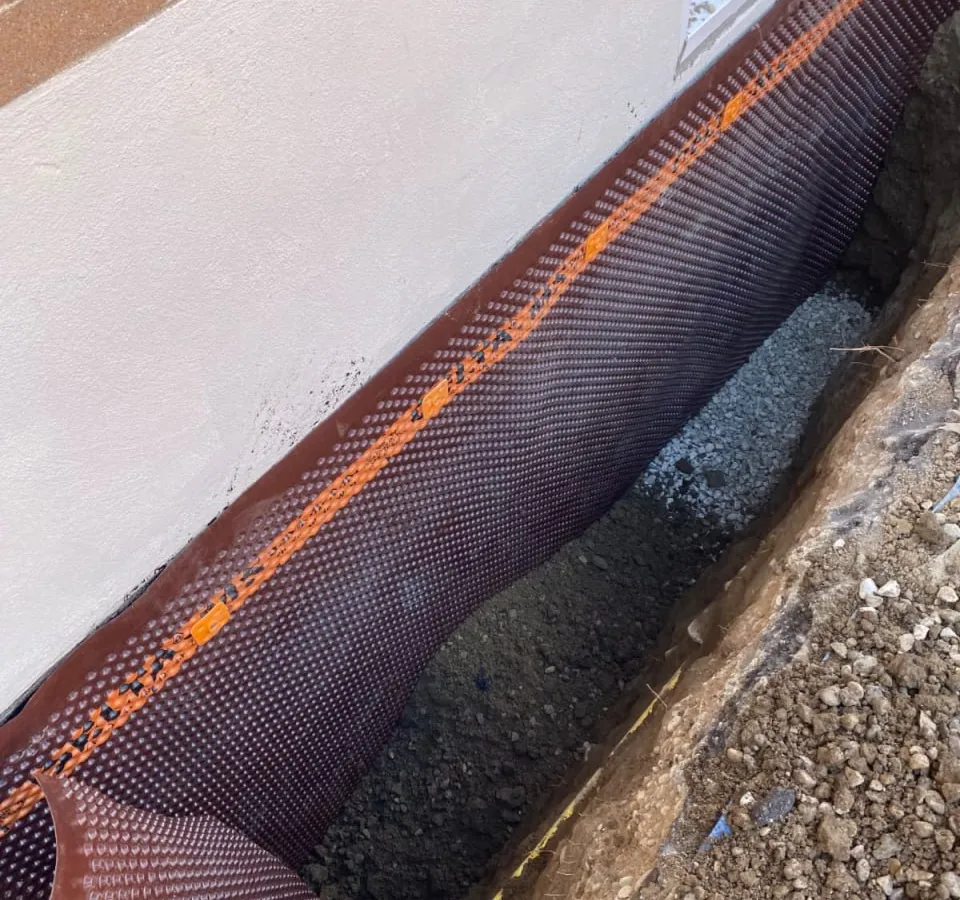

Phase 4: Complete Weeping Tile Replacement

The new weeping tile system was designed to exceed the capacity of the original installation, providing enhanced protection against future extreme weather events.

Enhanced Drainage Design

• Increased Capacity: Larger diameter pipes handling higher water volumes
• Redundant Discharge: Multiple outlets preventing single-point failure
• Professional Grading: Optimal slope ensuring efficient water flow
• Filter Integration: Advanced filtration preventing future blockages

Phase 5: Sump System Integration

The permanent sump pump system was integrated with the new weeping tile network, providing both primary drainage and backup protection.

Integrated Pumping Solution

• Primary Collection: Sump basin collecting all drainage water
• Backup Protection: Multiple pumps ensuring continuous operation
• Smart Controls: Automatic operation with manual override capability
• Alarm Systems: Notifications for maintenance or system issues

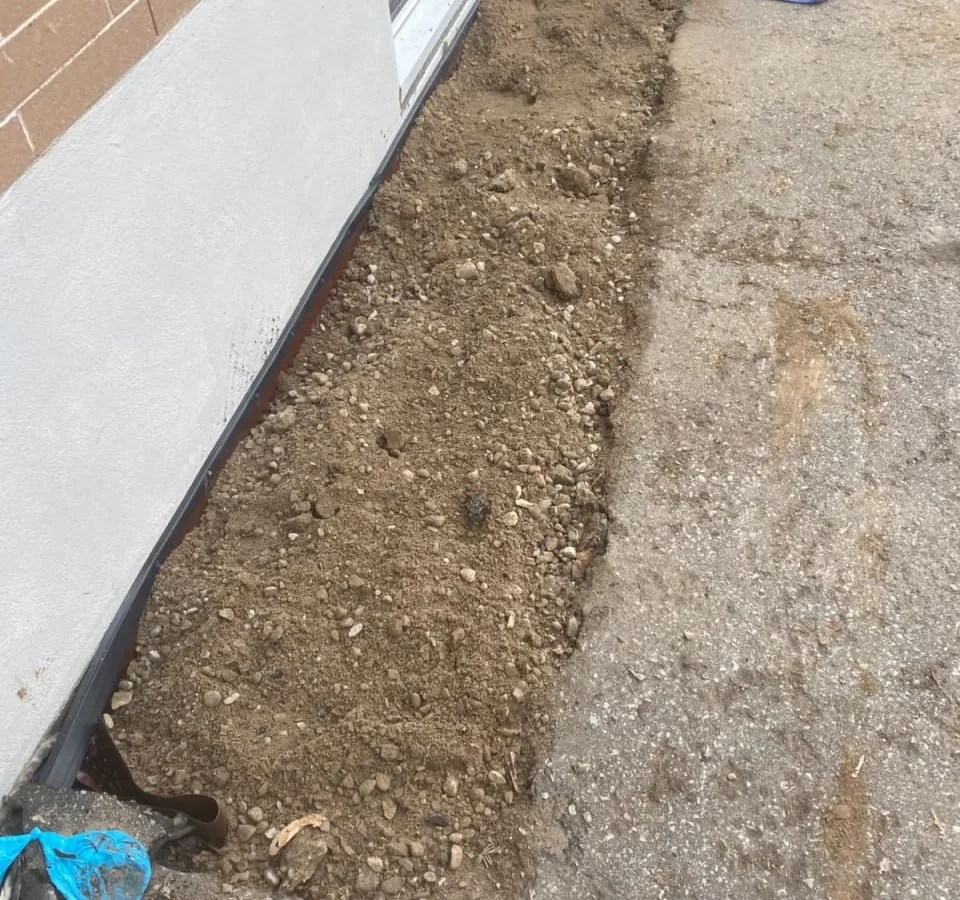

Phase 6: Professional Backfilling and Restoration

The final phase focused on proper backfilling and site restoration while maintaining the integrity of all installed systems.

• Protective Measures: Drainage board installation protecting membrane
• Graduated Backfill: Careful soil replacement and compaction
• Grade Optimization: Surface grading directing water away from foundation
• System Testing: Comprehensive testing of all drainage components
• Site Restoration: Complete cleanup and landscaping restoration

Results: Complete Water Management Solution

The completed two-wall exterior waterproofing system transformed this Barrie rental property from an emergency flooding situation to a comprehensively protected foundation.

Immediate Benefits

• Emergency Resolution: Complete elimination of basement water infiltration
• Tenant Return: Safe reoccupancy of basement rental unit
• System Reliability: Redundant protection against future failures
• Owner Confidence: Peace of mind for property owner and tenants

Long-Term Protection

• Comprehensive Coverage: Two-wall waterproofing providing complete protection
• Enhanced Capacity: Drainage system designed for extreme weather events
• Maintenance Access: Easy access for routine system maintenance
• Property Value: Professional waterproofing increasing rental property value

Prevention and Future Maintenance

This project provides valuable lessons about maintaining waterproofing systems in Barrie's challenging climate:

Recommended Maintenance Schedule

• Annual Inspections: Professional assessment of drainage system function
• Spring Preparation: Pre-season checks before snowmelt season
• Sump System Testing: Regular pump testing and backup system verification
• Discharge Monitoring: Ensuring all discharge points remain clear and functional

Early Warning Signs

Property owners and tenants should watch for:

• Changes in basement humidity or moisture levels
• Unusual sounds from sump pump systems
• Standing water around foundation during heavy rain
• Musty odors or signs of moisture infiltration

Why Existing Clients Need Re-Assessment

This Barrie project demonstrates why even satisfied customers should consider periodic waterproofing system evaluation:

Foundation Stress Over Time

• Seasonal Movement: Freeze-thaw cycles stress foundation systems annually
• Soil Changes: Drainage patterns evolve with landscape changes
• Material Aging: All waterproofing materials have finite lifespans
• Climate Evolution: Weather patterns may exceed original design parameters

System Integration Benefits

• New waterproofing can integrate with existing successful installations
• Technology improvements provide enhanced protection options
• Preventive upgrades cost less than emergency repairs
• Comprehensive systems provide better long-term value

Emergency Response Excellence

This Barrie rental property emergency showcased MT Drains' commitment to existing clients:

Rapid Response Capabilities

• 24/7 Emergency Service: Immediate response to urgent situations
• Equipment Ready: Professional emergency pumping equipment on standby
• Experienced Teams: Skilled technicians trained in emergency protocols
• Comprehensive Solutions: Addressing both immediate needs and long-term protection

Client-Focused Service

• Working with property owners during travel emergencies
• Coordinating tenant relocation and return
• Transparent communication throughout the crisis
• Building on existing trust and relationship history

Rental Property Water Damage Prevention

This project highlights critical considerations for rental property owners:

Tenant Safety Priorities

• Rapid response prevents tenant displacement
• Professional solutions maintain habitable conditions
• Quality waterproofing protects tenant belongings
• Reliable systems reduce emergency maintenance calls

Investment Protection

• Property Value: Professional waterproofing maintains rental property value
• Rental Income: Preventing extended vacancy periods
• Insurance Benefits: Proactive protection may reduce insurance costs
• Tenant Retention: Quality properties attract and keep good tenants

Barrie Area Waterproofing Expertise

This emergency response project demonstrates MT Drains' deep understanding of Barrie's unique waterproofing challenges:

• Local Climate Knowledge: Understanding seasonal patterns and extreme weather risks
• Soil Expertise: Working effectively with Barrie's clay soil conditions
• Emergency Preparedness: Ready to respond to urgent waterproofing failures
• Long-term Relationships: Building trust with property owners over many years
• Quality Standards: Consistently delivering professional results that last

If you own rental property in Barrie or surrounding areas and are concerned about basement water issues, don't wait for an emergency. Contact MT Drains for a comprehensive assessment of your waterproofing systems. Our experience with both new installations and emergency repairs ensures your investment and your tenants are protected.
